VPA 316. Vibrations, electrical parameters and
displacement analyzer |
|

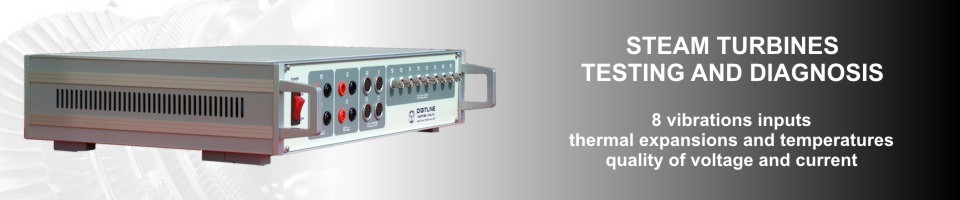

VPA 316 is a vibrations, electrical
parameters and displacement analyzer used for the testing and diagnosis
of power turbine and other rotating machines.
It offers the
possibility to analyze the vibrations on 8 channels alongside with speed
and other status parameters.
|
|
Measurement inputs |
-
8 IEPE-type vibration inputs
-
1 laser-type speed and phase input
-
2 laser or inductive-type
displacement (thermal expansion) inputs
-
1 temperature input, 4-20mA
-
2 AC/DC, 150V/600V voltage inputs,
galvanic separation
-
2 AC/DC, 5A current inputs,
galvanic separation
-
16-bit
resolution, 50 kS/s/ch sampling rate, precision 0.1%
|
|
Power supply |
|
|
|
Digital inputs/outputs |
-
4 optocoupling inputs, 0-24VDC
-
4
optocoupling outputs, 0-24VDC/100mA
|
|
Interfaces |
-
USB (conditioner-PC
communication)
-
Ethernet (fixed Internet remote
monitoring)
-
GSM-GPRS (mobile Internet remote
monitoring)
|
|
Components |
-
VPA 316 signal conditioner
-
Speed,
temperature and displacement accelerometers and transducers
(acc. to request)
-
Fastview
analysis software (acc. to request)
-
Portable computer
-
User’s manual
-
Calibration certificate
-
Carrier bag
